Oписание продукта

AT518 Portable Digital micro ohm meter DC Milliohm Resistance Meter Tester ,10 Micro~20M Ohm, Low Ohm Meter,Micro Ohm Meter

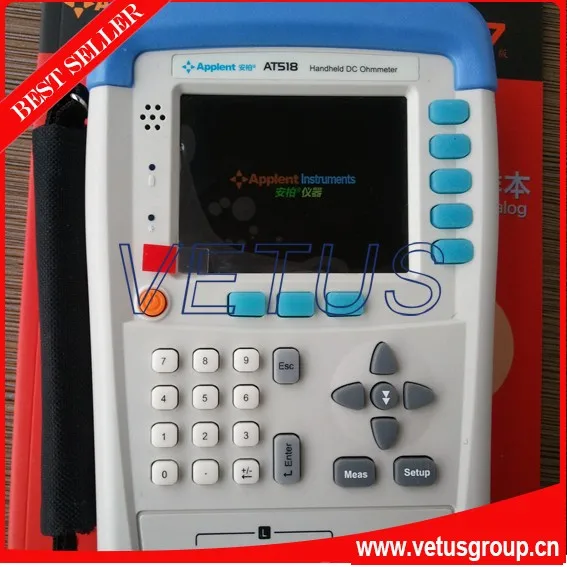

AT518 handheld DC milliohm meter is the use of high-performance processors and 3.5" TFT LCD screen smart handheld Meter. Accurate and convenient measurements of passive-components can be achieved in all occasions for a long time. Wide Measurement Range from 10μΩ to 20MΩ, and 20000 readers. It can guarantee 0.05% accuracy, even in the condition of the testing speed under 15t/s. its unique current testing mode can adapt different testing. To apply to long distance control, DAQ and analysis, AT518 is equipped with Mini-USB interface.
AT518 can test all kinds of high-ohm, medium-ohm, low-ohm tester; switch connect, connector contact, relay coil and contact resistance; Transformer, Inductor, motor, deflection coil winding resistance, wire resistance; The metal winding resistance of vehicle, vessels, and airplane; PCD line and hole, etc.


Parameter DC Resistance
Accuracy 0.05%
Measurement Range 10μΩ~20MΩ
Measurement current I-Max: <1A Current Mode: high current, low current
Range Auto, manual, nominal with 10 ranges
Speed 30 t/s,15t/s,3t/s
Display ABS, PER, SEQ compare way
Display Max 20000
Adjustment Short-circuit Zero-Adjust for each range
Comparator Build-in sorting record, GD/NG sorting result display
Trigger Internal, Manual, Remote
Interface Build-in Mini-USB Interface(VCP)
Temperature compensation Accuracy: 0.2 °C Measurement Range: 0~80°C
Method 4 Terminal(2 sense 2 drive)
  Input: 100-240V~50/60Hz 0.35A Output: 9V 1A DC 8.4V,Li,2200mAh Rechargeable Battery
  Outside(mm): 130.23 (Width)x210.76(Height)x37.88 (Depth) 650g
  ATL501B: Four-terminal Kelvin Test Clip ATL909: DC resistance adaptor ATL202: Carrying Case ATL804: Li- battery ATL105: Mini-USB communicable cable ATL501C: Four-terminal test Probe ATS518 data acquisition software
  TFT-LCD display; Keypad lock; Data hold; Adjustable background light; Auto power off; Switch in both Chinese and English;



The side
The bottom
The product packing and specification
